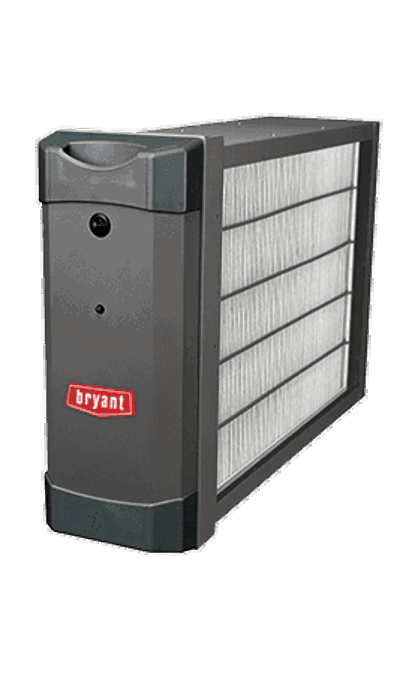

- Product Line: Air Purifiers - Evolution Series
- MERV Efficiency: 15
- MERV Efficiency Range: 15+ MERV
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Features
- Patented Captures & Kills® technology
- Long-lasting MERV 15 filter
- Captures 95% of particles1
- Inactivates 99% of select virus and bacteria, including:2
- Human influenza
- Common cold surrogate
- Streptococcus pyrogenes
- Coronavirus2
- Narrow cabinet design for easier installation in tight spaces
- Helps protect heating and cooling equipment
- 10-year parts limited warranty upon timely registration (excludes filter replacements)3
1 Based on third-party testing (2012) showing 95% of particles size 1.0 to 3.0 microns captured.
2The Evolution Air Purifier has demonstrated effectiveness against the murine coronavirus, based on third-party testing (2020) showing a >99% inactivation, which is a virus similar to the human novel coronavirus (SARS-CoV-2) that causes COVID-19. Therefore, the Infinity Air Purifier can be expected to be effective against SARS-CoV-2 when used in accordance with its directions for use. Third-party testing (2012, 2007) also shows ≥99% inactivation for the type of virus that causes common colds, Streptococcus pyogenes and human influenza. Airborne particles must flow through your HVAC system and be trapped by the MERV 15 Evolution filter to be inactivated at 99%. The Evolution air purifier achieves a MERV 15 rating based on third-party testing (2012) showing 95% of particles size 1.0 to 3.0 microns captured and 85% of particles size 0.3 to 1.0 microns captured. Learn how it works.
3To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
PERFORMANCE
Efficiency MERV 15 filtration captures 95% of particles1
Rated airflow 1620:1200 cu/ft/min; 1625:1400 cu/ft/min; 2020:1400 cu/ft/min; 2025: 1750 cu/ft/min; 2420:1750 cu/ft/min
Pressure drop Creates minimal airflow resistance
TECHNOLOGY
Filtration Patented Captures and Kills™ technology
Compatibility Can be fitted to operate in line with with nearly any brand ducted system. Patented True Sense™ dirty filter detection available with Evolution control
INSTALLATION
Installation For use with furnaces in upflow, downflow or horizontal positions
Electrical 115V, 208-230V
AESTHETICS
Cabinet Heavy-gauge, epoxy coated steel
Dimensions Furnace/fan coil sizes: 1620: 18.5"H x 7.25"W x 24.75"D; 1625: 18.5"H x 7.25"W x 27.75"D; 2020: 22.25"H x 7.25"W x 24.75"D; 2025: 22.25"H x 7.25"W x 27.75"D; 2420: 25.75"H x 7.25"W x 24.75"D
1 Based on third-party testing (2012) showing 95% of particles size 1.0 to 3.0 microns captured.
2 Based on third-party testing (2012, 2007) showing >99% kill rate for common cold surrogate, Streptococcus pyogenes and human influenza.
