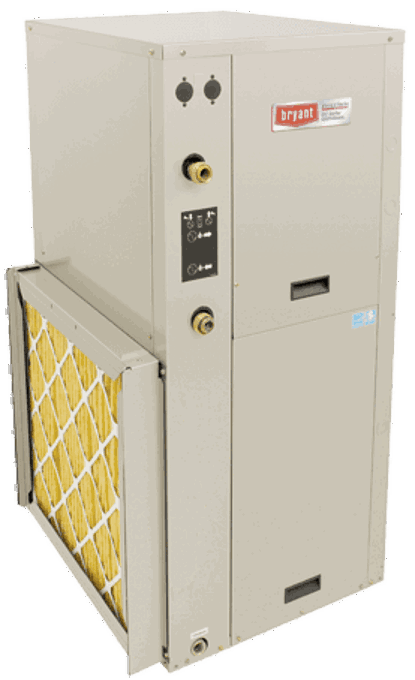

Evolution™ Variable-speed Geothermal Heat Pump  Photo
  • Bio

Evolution™ Variable-speed Geothermal Heat Pump

  • Product Line: Geothermal Heat Pumps - Packaged
  • System Type: Packaged Forced Air System
  • Energy Star: All sizes qualified
  • EER Efficiency Range: 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
  • COP Efficiency Range: 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
  • Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
  • Compressor Type: Two-Stage

Features

  • Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 32.0; Closed loop heating COP - Up to 4.7
  • Optimal dehumidification capability with the Evolution Connex control
  • Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
  • Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
  • Superior summer dehumidification
  • Smart startup for smoother operation
  • Insulated cabinet and compressor blanket for quiet operation
  • Wide operating temperature range with exceptional cold weather performance
  • Corrosion-resistant coil for durability
  • 2" MERV 13 filtration
  • 10-year parts and labor limited warranty1

OPTIONAL FEATURES

  • Supplemental, domestic hot water generation
  • Internally-mounted auxiliary heat

1To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Cooling Efficiency 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)

Heating Efficiency 3.8 to 4.7 COP (closed loop);  4.5 to 5.2 COP (open loop)

Heating and CoolingStages Two-stage operation for efficiency and comfort

ENERGY STAR® ENERGY STAR ® qualified in all sizes

SOUND

Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket

CONVENIENCES

Filter Cabinet Built-in for easy filter changes

Maintenance Reminders With Evolution Connex control

TECHNOLOGY

Blower Motor High-efficiency variable-speed

Compressor Two-stage scroll

Control Board Microprocessor with compressor diagnostic capability

Refrigerant Puron® refrigerant

Refrigerant Management Thermostatic expansion valve

Protection Corrosion-resistant coil protection for long life

INSTALLATION

Positioning Vertical upflow, horizontal or vertical downflow units available

AESTHETICS

Capacity 2-6 tons

Construction Galvanized steel

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
