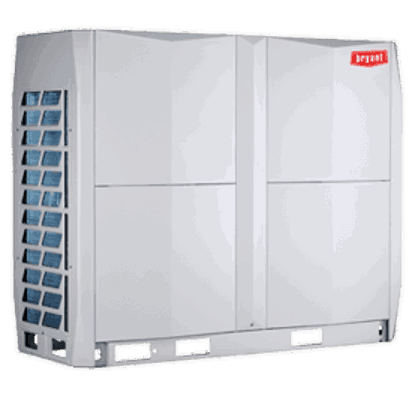

Heat Recovery Outdoor Unit  Photo
  • Bio

Heat Recovery Outdoor Unit

  • Product Line: VRF - Outdoor Unit
  • Type: 3-phase Heat Recovery
  • Capacity Range: 6.0 - 28.0 Tons
  • Phase: Three Phase
  • Voltage: 208/230V|460V
  • Modules: Small, Medium and Large
  • Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds

Features

Product Features

  • Available in 6 – 28 ton non modular design
  • Industries most compact 20 ton VRF system
  • Ability to connect up to 64 indoor units
  • 2-pipe heat recovery system
  • High performance outdoor units with all inverter driven scroll compressor
  • DC inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -13⁰ F to 60⁰ F
  • Connected capacity is up to 150%

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motor are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • System utilizes 2 pipes to connect to multiport distribution controller(s)and up to 64 indoor units
  • Integrated controls design allows for complete system control
  • Single power connection for 28 ton systems
  • System utilize quick connect controls system

Specifications

Warranty

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant which is not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor.
