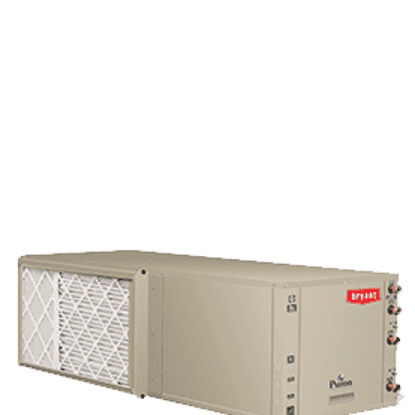

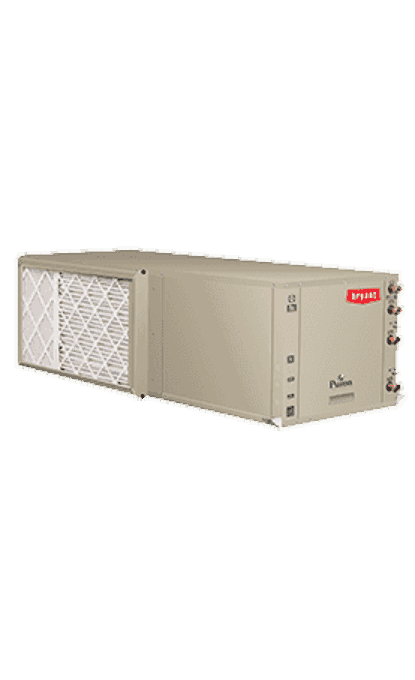

Legacy™ Multi-speed Geothermal Heat Pump  Photo
  • Bio

Legacy™ Multi-speed Geothermal Heat Pump

  • Product Line: Geothermal Heat Pumps - Packaged
  • System Type: Packaged Forced Air System
  • Energy Star: All sizes qualified
  • EER Efficiency Range: 18.5 to 21.7 EER (closed loop); 21.4 to 28.1 EER (open loop)
  • COP Efficiency Range: 3.7 to 4.3 COP (closed loop); 4.3 to 5.2 COP (open loop)
  • Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
  • Compressor Type: Single-Stage

Features

  • Manage your utility costs with high-efficiency geothermal (efficiency is unit size dependent):  Closed loop cooling EER - Up to 28.1;  Closed loop heating COP - Up to 4.3
  • Multi-speed air delivery aides quiet performance
  • Single-stage compressor operation
  • Insulated cabinet for quiet operation
  • Wide operating temperature range with exceptional cold weather performance
  • Corrosion-resistant coil for durability
  • 2" MERV 8 filtration
  • 10-year parts and 5-year labor limited warranty1

OPTIONAL FEATURES

  • Supplemental, domestic hot water generation
  • Internally-mounted auxiliary heat
  • Smart startup add-on for smoother operation

1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for  details.

Specifications

EFFICIENCY MANAGEMENT

Cooling Efficiency 18.5 to 21.7 EER (closed loop); 21.4 to 28.1 EER (open loop)

Heating Efficiency 3.7 to 4.3 COP (closed loop); 4.3 to 5.2 COP (open loop)

Heating and CoolingStages Single-stage operation

ENERGY STAR® ENERGY STAR® qualified in all sizes

SOUND

Quiet Levels Quiet operation enhanced by full cabinet insulation and double-isolation compressor mounting

CONVENIENCES

Filter Cabinet Built-in for easy filter changes

MaintenanceReminders With compatible control

TECHNOLOGY

Blower Motor Multi-speed

Compressor Single-stage scroll (2-5 ton); Single-stage rotary (1.5 ton)

Control Board Microprocessor

Refrigerant Puron® refrigerant

Refrigerant Management Thermostatic expansion valve

Protection Corrosion-resistant coil protection for long life

INSTALLATION

Positioning Vertical upflow and horizontal units available

AESTHETICS

Capacity 1.5-5 tons

Construction Galvanized steel

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
