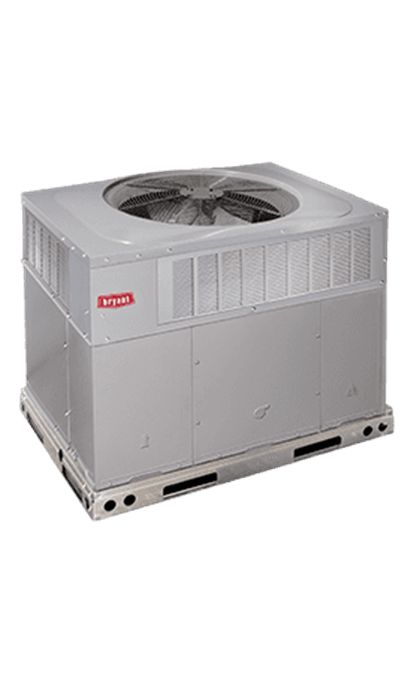

- Product Line: Packaged Products - Preferred Series
- System Type: Air Conditioners
- Energy Star® Qualified: All sizes qualified
- SEER Range: 16 to 19.9 SEER
- COOLING EFFICIENCY: up to 16 SEER
- HEATING EFFICIENCY: N/A
- Compressor Type: Single-Stage
- Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds
Features
- Enjoy cool, summer comfort up to 16 SEER & 12.5 EER efficiency
- Enjoy the optimized comfort of multi-speed air delivery
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced humidity control during cooling operation through two-stage operation
- Galvanized steel cabinet with "coil on top" design for lasting durability against the elements
- Louvered grille protects the coil against physical damage
- Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
- 10-year parts limited warranty upon registration2
- Copper coil 5-year parts limited warranty
2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 16 SEER/12.5 EER
ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency in all models/sizes
Cooling Stages Two-stage operation for efficiency and comfort
SOUND
Quiet Levels During most common cooling operating condition: 72 dB
CONVENIENCES
Remote Access Manage your system from afar with remote access when paired with the Bryant HousewiseTM Wi-Fi® thermostat
Reminders Automatic maintenance reminders and service alerts with the Housewise tthermostat
TECHNOLOGY
Blower Motor High-efficiency multi-speed
Compressor Two-stage scroll
Refrigerant Puron® refrigerant
Refrigeran Management Thermostatic expansion valve
Optional Protection DuraCoatTM tin-plated coil protection for additional corrosion resistance
Capacity 2-5 tons
AESTHETICS
Design Coil on top, solid panels below
Construction Galvanized steel with high-tech composite (rust-free) base
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
