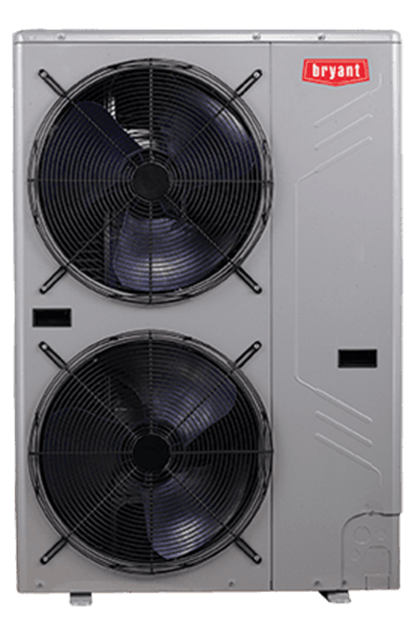

Single-phase Heat Pump Outdoor Unit  Photo
  • Bio

Single-phase Heat Pump Outdoor Unit

  • Product Line: VRF - Single-phase Outdoor Unit
  • Type: Single-phase Heat Pump
  • Capacity Range: 3.0 - 5.0 Tons
  • Phase: Single Phase
  • Voltage: 208/230V
  • Modules: Single
  • Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds

Features

Product Features

  • Up to 18.6 SEER cooling efficiency
  • Up to 10.0 HSPF heating efficiency
  • Available in 3, 4 & 5-ton capacity range
  • 208/230V-1-60 power supply
  • Ability to connect up to 9 multiple style indoor units on a 5 ton system
  • 2-pipe heat pump system
  • High performance outdoor unit with Inverter-driven scroll compressor
  • Cooling Operating Range: 5° F to 118° F
  • Heating Operating Range: 5° F to 64° F
  • Connected capacity up to 130%
  • Quiet outdoor operation, as low as 58.7 dB(A)

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • Factory provided controls
  • Single point electric connections

Specifications

Warranty

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant which is not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor.
