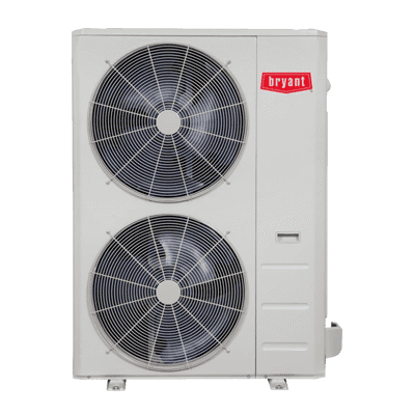

Preferred™ Multi-Zone Heat Pump with Basepan  Photo
  • Bio

Preferred™ Multi-Zone Heat Pump with Basepan

  • Product Line: Ductless systems – Preferred Series
  • Energy Star® Qualified: Some sizes qualified
  • SEER Range: 23+ SEER
  • SEER Efficiency: up to 23.8
  • HSPF Efficiency Range: 10 to 11.9 HSPF
  • HSPF Efficiency: up to 10.5
  • Sound Level Range: 60+ Decibels
  • Sound Level: As low as 62 decibels
  • Purpose: Heating and cooling
  • System Type: Multi-Zone
  • Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds

Features

  • 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
  • Inverter Compressor
  • Up to 23.8 SEER cooling efficiency
  • Up to 10.5 HSPF heating efficiency
  • Select sizes are ENERGY STAR® certified based on indoor combinations
  • Available in 208/230V
  • Sizes ranging from 18 to 48
  • Built-in basepan heater
  • Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
  • Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor sound operation, as low as 62 decibels1
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console

1 Quietest size within each model group during most common cooling operating condition.

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 23.8 SEER/up to 13.5 EER/up to 10.5 HSPF

ENERGY STAR®  Select sizes are ENERGY STAR ® certified based on indoor unit combinations

COMFORT MANAGEMENT

Cooling Outdoor range operates from -13° F up to 122° F (-25° C up to 50° C)

Heating Outdoor range operates from -22° F up to 86° F  (-30° C up to 30° C)

SOUND

Quiet Levels As low as 62 dB(A) 1

CONVENIENCES

Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Inverter, isolated for sound reduction

Protections Voltage, current, high pressure, and loss of charge

System Capacity 1.5 - 4 tons

AESTHETICS

Construction Durable, heavy gauge galvanized steel

Paint Baked-on, powder paint

Line Length Up to 328 ft.

MODEL

Full Model Number 38MGRQXXX--3

COMPATIBLE UNITS

Full Model Numbers (Multi-Zone System) 619PEQXXXBBMA High Wall, 619REQXXXDBMA Ducted, 619REQXXXCBMA Cassette, 619REQXXXFBMA Floor Console

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1 Quietest size within each model group during most common cooling operating condition.
